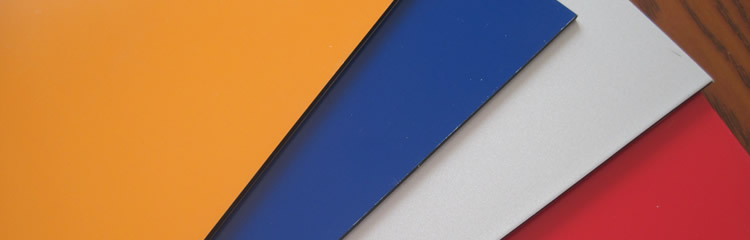

Aluminum Composite Panel

High quality Aluminum Composite Panel, consists of aluminum sheets on both sides and a middle layer of non-toxic polyethylene. A range of surface coating available in the aluminum surface, the most popular are PE coating and PVDF coating, which make the panel can meet requirement for Signage Applications and Construction.

Features：

1) High strength, rigidity and durability
2) Super peeling strength
3) Directly printing on PE coating panel
4) Excellent Weather resistence
5) Waterproof, Fire resistance and Corrosion resistance
6) Available in various colors and sizes
7) Double side with protection film
8) Easy installation
9) High chemical stability

Applications：

1) Graphic mounting
2) Advertising Panel
3) Display System
4) Exhibition Stand Design
5) Indoor/Outdoor decoration
6) Wall System
7) Roof edges and parapet wall

Compatible Ink:

UV/SCREEN

Specifications：

Data Sheet

Item No.	Coating	Thickness	Aluminum thickness	Size	Color	Material	Note
		mm	mm	m
Aluminum Composite Panel
Aluminum Composite Panel	Polyester PE	3	0.10 / 0.12 / 0.15 / 0.21 / 0.25 / 0.30	1.22*2.44 Different size available upon request	Different color available upon request	Aluminum sheets + Polyethylene	One side or double side coating all available
		4 / 5 / 6	0.21 / 0.25
		7	0.30
	Polyvinylidene Fluoride PVDF	3	0.30

Note：	Above mentioned physical properties are average of test results, provided for reference only.
